How to Install an Electronic Air Cleaner: A Step-by-Step Guide
Why Electronic Air Cleaner Installation Transforms Your Home's Air Quality
Electronic air cleaner installation is a proven way to remove up to 95% of airborne particles as small as 0.3 microns from your home's air. Here's a quick overview:
Quick Installation Overview:
- Turn off power to your HVAC system.
- Mount the unit in your return air duct.
- Connect the wiring to your furnace's 24V terminals.
- Seal all ductwork joints with foil tape.
- Test the system and check indicator lights.
Time Required: 60-90 minutesSkill Level: Moderate (3/5)Tools Needed: Drill/driver, tin snips, voltmeter, safety gear
Unlike traditional filters that just trap particles, electronic air cleaners use ionization to charge particles and collect them on washable, reusable metal plates. This makes them more cost-effective than disposable filters over time.
According to the EPA, indoor air can be 2 to 5 times dirtier than outdoor air. Electronic air cleaners help address this by removing dust, pollen, smoke, bacteria, and even virus-sized particles from your home's circulating air.
I'm Stephanie Allen, and with my experience in home improvement projects, I've helped many homeowners with electronic air cleaner installation systems, ensuring they get the best value for their investment.
Before You Begin: Prep for Your DIY Project
Before starting your electronic air cleaner installation, a little preparation will ensure the project goes smoothly.
Comparing Electronic Air Cleaners to Traditional Filters
You might wonder why you'd choose an electronic air cleaner over standard disposable filters. The answer lies in how they work.
Traditional HVAC filters act like a net, catching larger particles like dust and pet hair but struggling with microscopic irritants. They typically capture particles down to about 3 microns and require monthly replacement.

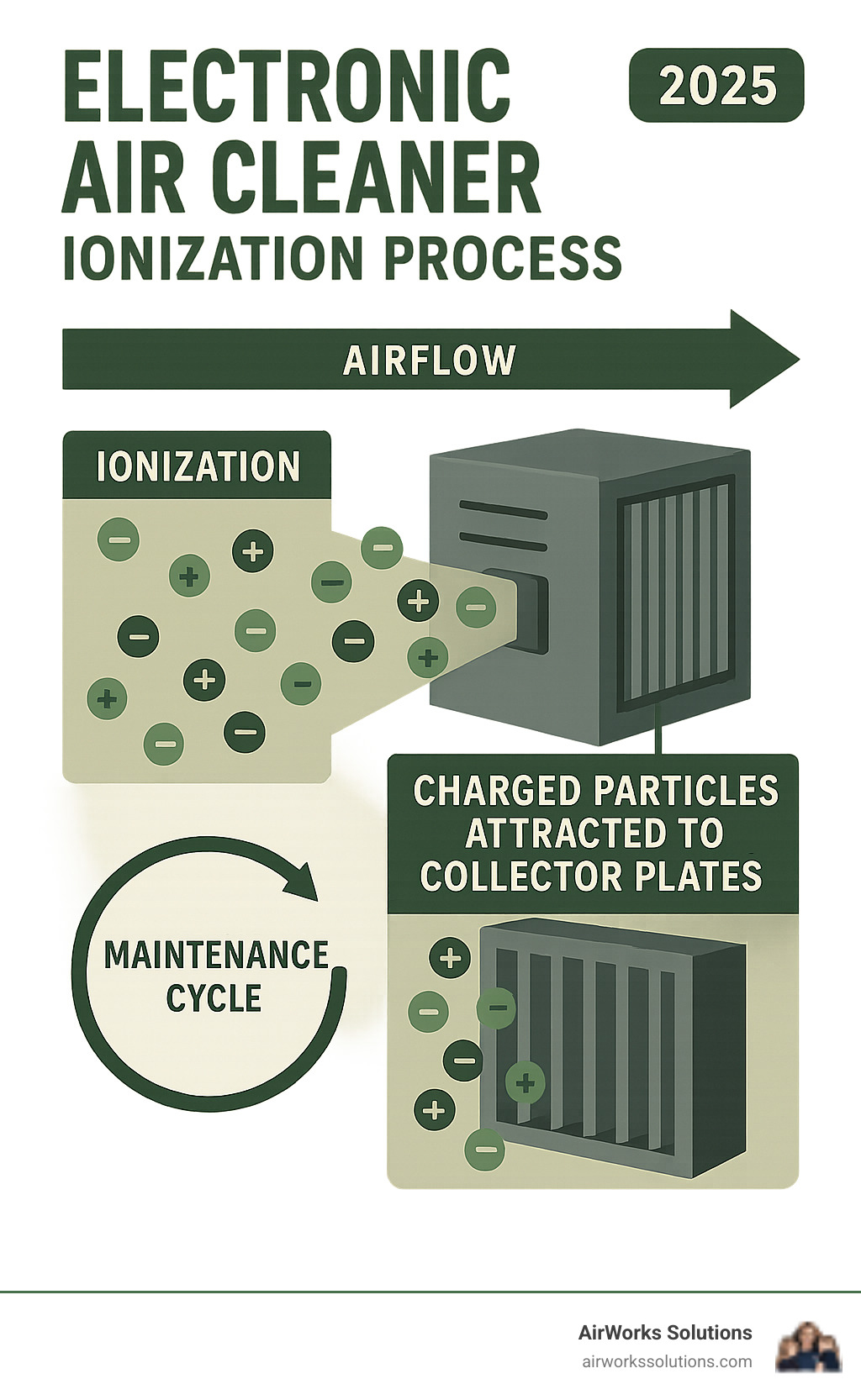

Electronic air cleaners use ionization to charge microscopic particles, which are then attracted to metal collector plates. This process can capture incredibly small particles, down to 0.01 microns.
| Feature | Electronic Air Cleaners | Traditional HVAC Filters (e.g., MERV, HEPA) |
|---|---|---|
| Particle Capture | Highly efficient, down to 0.01 microns (e.g., 95% of 0.3 microns, 80% of virus-sized particles) | Effective for larger particles (e.g., HEPA captures 99.7% of particles > 0.3 microns) |
| Mechanism | Ionization charges particles, then collects them on plates | Physical barrier traps particles in media |
| Reusability | Components (cells, pre-filters) are washable and reusable | Disposable; replaced regularly |
| Long-Term Costs | Lower due to reusability, though initial unit cost is higher | Higher due to recurring filter replacement costs |
| Maintenance Effort | Requires periodic cleaning (washing cells) | Requires periodic replacement of disposable filters |
| Typical Cleaning/Replacement Frequency | Every 2-6 months (depending on household conditions) | Every 1-3 months (depending on filter type and household conditions) |
The key advantage is reusability. Instead of buying new filters, you simply wash the collector cells. Over time, this saves money and reduces waste.
If you're curious about the science behind air cleaning, check out our detailed explanation of Air Filtration vs. Purification.
Tools and Materials You'll Need
To avoid interruptions, gather all your tools and materials before you begin.
You'll need a drill/driver for mounting and tin snips for cutting sheet metal ducts. Sheet metal screws will secure the unit, while foil-faced duct tape is essential for sealing gaps (regular duct tape is not suitable).
For the electrical work, a voltmeter is needed to identify the correct terminals and confirm the power is off. You'll also need wire strippers and both Phillips and flathead screwdrivers.
Safety gear is non-negotiable: wear safety glasses to protect from metal shavings and work gloves to prevent cuts from sharp edges.
Also, have a measuring tape, marker, level, and gasket strips on hand. Some installations may require flexible duct adapters.
Understanding the Costs and DIY Skill Level
This project is of "moderate" difficulty, more complex than changing a light fixture but less involved than a major rewiring project.
Expect the installation to take 1-3 hours, depending on your HVAC setup and experience.
An electronic air cleaner installation requires sheet metal and low-voltage electrical skills. You must be comfortable turning off power to your entire HVAC system and identifying the correct terminals on the furnace control board.
While the upfront cost is higher than disposable filters, electronic air cleaners pay for themselves over time through reusable components.
If you're uncertain about any step, especially the electrical work, it's wise to call a professional. A botched installation can damage your HVAC system or create safety hazards. For more information on choosing the right filtration, visit our HVAC Filters page.
Step-by-Step Electronic Air Cleaner Installation Guide
With your tools ready, it's time to install your new electronic air cleaner. Patience and precision are key.
Safety First: Critical Precautions
Safety is the top priority. HVAC systems involve high voltage and moving parts that can cause serious injury.
Golden Rule: Turn off all power to your HVAC system at the main electrical panel. Do not rely on the thermostat or a service switch. An improper connection can lead to electric shock.
Always wear safety glasses and work gloves. Having a fire extinguisher nearby is also good practice.
Finally, read the entire instruction manual that comes with your specific unit before you start. Every model has unique requirements, and ignoring them can be dangerous and void your warranty.
Preparing the Ductwork
Proper placement is crucial for your electronic air cleaner installation. The unit must be installed in the return air duct so all circulating air passes through it.
The ideal location is in the return-air duct, next to the furnace's blower compartment. This ensures air is cleaned before reaching the blower motor and cooling coil. Installing the unit upstream of the cooling coil helps keep the coil clean, improving efficiency and system longevity.
Following the dimensions in your manual, carefully measure and mark the opening. Use tin snips to cut the opening in the sheet metal, being mindful of sharp edges.
Ensure there is enough clearance for future maintenance (typically 18-24 inches in front for access). If your ductwork doesn't match the unit's opening, you may need to create gradual transitions to maintain optimal airflow.
Mounting the Unit and Sealing the Ducts
This step ensures a secure, air-tight fit so that air flows through the cleaner, not around it.
First, apply any included self-adhesive gasket strips around the air cleaner cabinet's perimeter to create a tight seal.
Next, carefully position the air cleaner cabinet into the opening. Ensure it's level, then use a drill/driver and sheet metal screws to secure it to the furnace or surrounding ductwork.
If you used any transitional pieces, install and fasten them securely.
Finally, use foil-faced duct tape to thoroughly seal all joints and seams where the air cleaner meets the ductwork. An air-tight seal is critical for maximizing the unit's effectiveness. For comprehensive indoor air quality, regular Air Duct Cleaning also plays a vital role.
The Basics of Wiring an Electronic Air Cleaner
The wiring for most electronic air cleaners is low-voltage (24vac), but it requires care. If you are ever unsure about electrical work, consult a qualified electrician or HVAC professional.
Most units connect to the 24vac common (C) and hot (R) terminals on your furnace control board. Some newer boards have dedicated terminals labeled for Electronic Air Cleaners (EAC-1 and EAC-2). Always consult your furnace's wiring schematic and your air cleaner's manual. A voltmeter is essential for identifying the correct terminals.
The goal is for the air cleaner to operate whenever the furnace blower is running. Some installations may use a sail switch (detects airflow) or a separate transformer if the furnace board lacks suitable terminals. Advanced units may use an AirFlow Sensor (AFS) to detect air movement.
Ensure the unit is properly grounded according to the manufacturer's instructions. Once connected, route the power cord neatly away from moving parts. After wiring, secure the electrical panel cover on your HVAC system. For more on how your furnace integrates with various systems, check out our Heating Services page.
Operation, Maintenance, and Troubleshooting
Your electronic air cleaner installation is complete, but proper operation and maintenance are key to long-term performance.
System Checkout and First-Time Use
With all panels closed, restore power to your HVAC system at the main breaker.
At your thermostat, set the fan switch to "ON" instead of "AUTO." This runs the blower continuously, which is recommended for optimal air cleaning.
Check your electronic air cleaner's indicator lights (usually green for power, red for cell energized) to verify they are on when the blower is running. A slight snapping or crackling sound is normal for a new unit as it vaporizes larger particles; this should diminish within 24 hours.
If everything looks and sounds good, congratulations! Your air cleaner is now operational. For more on optimizing your system, explore our Air Conditioning Services.
Creating a Maintenance Schedule
Electronic air cleaners require regular cleaning to remain effective.
Cleaning frequency depends on household conditions (pets, smoking, etc.), but a good starting point is every 2-6 months.
Here's a general cleaning procedure:
- Turn off power: Always turn off power at the breaker before opening the unit.
- Remove components: Carefully slide out the pre-filters and collector cells.
- Wash: Soak them in a tub with hot water and automatic dishwasher detergent for 30 minutes. Some models are dishwasher safe (check your manual).
- Rinse: Rinse thoroughly with clean water.
- Dry: Allow components to air dry completely (at least 2 hours). They must be bone dry before reinstallation to prevent electrical arcing.
- Reinstall: Slide the components back in, ensuring correct orientation. Close the access door and restore power.
While cleaning, inspect the thin ionizing wires for breaks and gently wipe them down to remove buildup. Regular maintenance protects your HVAC system from reduced airflow and potential damage. To stay on top of all your HVAC needs, consider a Maintenance Plan.
Common Troubleshooting Tips
Even with proper care, issues can arise. Here are some common problems:
- Unit Not Powering On: Check the breaker, ensure the access door is fully closed (to engage the safety switch), and verify wiring connections.
- Excessive Arcing or Zapping: A little zapping is normal, but constant arcing usually means the collector cells are dirty and need cleaning. Also, check for bent plates or broken ionizing wires.
- Indicator Light Issues:
- Green light off: No power is reaching the unit. Check the power supply and wiring.
- Red light off (green on): This indicates a short in the collector cells, which are likely dirty or damaged.
- "White Dust" Phenomenon: This is often heavy lint that settles before reaching the air cleaner. Running your HVAC blower continuously helps capture more of these particles.
If these tips don't resolve the issue, it may be time to call a professional.
When to Call a Professional for Your Electronic Air Cleaner Installation
While DIY projects are satisfying, for an electronic air cleaner installation, sometimes the smartest decision is knowing when to call a professional.
Signs You Need Expert Help
Here are red flags that signal it's time to call in the pros:
- Complex wiring situations: If you open your furnace panel and the wiring diagram is confusing or there are no clearly marked EAC terminals, stop. One wrong connection can damage your HVAC system.
- Unfamiliarity with HVAC systems: If you're not comfortable working with ductwork, blower compartments, or sheet metal, this project may be more than you bargained for.
- Warranty concerns: Many manufacturers state that improper installation voids their warranty and will not provide technical support to non-qualified installers due to high-voltage risks.
- Safety concerns: High-voltage electricity and sharp sheet metal are unforgiving. If you feel uncertain about any step, trust your instinct and call a professional.
The Value of Professional HVAC Services
When you hire a professional for your electronic air cleaner installation, you're investing in expertise, safety, and peace of mind.
- Proper Installation: Experienced technicians have seen every type of system and know how to integrate new components seamlessly for optimal airflow and efficiency.
- Performance Optimization: A professional ensures your unit is installed correctly, with proper sealing and electrical connections that prevent future problems.
- Warranty Protection: Professional installation keeps the warranties on both your new air cleaner and your existing HVAC equipment intact.
- Peace of Mind: Knowing that high-voltage equipment was installed by certified technicians provides invaluable peace of mind. We serve homeowners throughout the greater Sacramento area, including Placer and Yolo Counties, and we stand behind our work.
If you're considering other HVAC upgrades, our guide on HVAC System Installation covers important considerations for whole-system improvements.
