What Is a Ductless Mini Split and How Does It Work?

How does a ductless mini split work is a great question — and the short answer is this:

• An outdoor unit (compressor/condenser) connects to one or more indoor units via a small conduit containing refrigerant lines, power cables, and a condensate drain
• The indoor unit absorbs heat from the air in your room using an evaporator coil and refrigerant
• That heat is carried through the refrigerant lines to the outdoor unit, where it is released outside
• The cooled air is then circulated back into your room by the indoor fan
• In heating mode, the process simply runs in reverse — pulling heat from outside air and moving it indoors
• Each indoor unit controls its own zone, so you only condition the rooms you actually use

No ductwork. No central air handler. Just efficient, room-by-room comfort.

If you've ever walked into a room that's always too hot in summer or too cold in winter, you already know the frustration. Traditional central air conditioning does its best, but it treats your whole home as one zone — which means energy gets wasted heating or cooling rooms nobody is in. And if your home doesn't have existing ductwork, adding it is a major project. That's exactly where ductless mini splits shine. They've become one of the most popular home comfort upgrades in Ventura County and beyond, and for good reason: they're flexible, efficient, and surprisingly simple once you understand how they work.

I'm Stephanie Allen, CEO of AirWorks Solutions and a recognized voice in the HVAC industry, and helping homeowners understand how does a ductless mini split work is one of the most common conversations I have with customers across Southern California. In the sections below, I'll walk you through everything you need to know — from the refrigerant cycle to sizing, installation, and maintenance — in plain language, no jargon required.

How Does a Ductless Mini Split Work?

To understand how does a ductless mini split work, think of it as a heat transporter rather than a cold air creator. It doesn't actually "make" cold; it simply moves heat from where you don't want it (inside) to where it doesn't matter (outside).

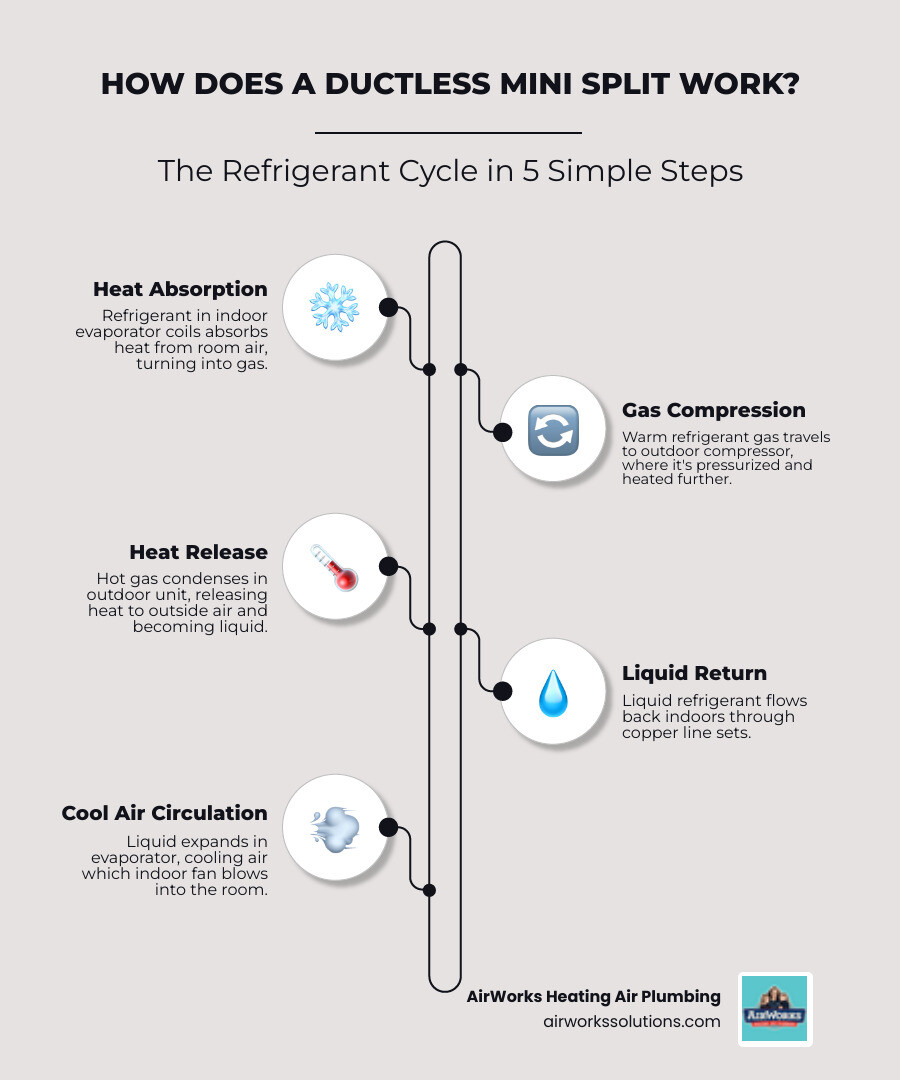

This magic happens through the refrigerant cycle. Inside the system, a chemical called refrigerant cycles between the indoor and outdoor units. This substance has a very low boiling point, allowing it to change from a liquid to a gas easily. When it’s in the indoor evaporator coils, it absorbs the heat from your room's air. The now-warm refrigerant travels through a copper line set to the outdoor compressor.

The compressor squeezes the refrigerant, raising its temperature even higher so it can release that heat into the outside air—even if it's already warm out! Once the heat is dumped, the refrigerant cools back down, turns back into a liquid, and heads back inside to start the process all over again. If your system starts acting up or stops cooling effectively, it might be time for a Ductless Mini Split Repair Antelope CA to check those refrigerant levels or compressor health.

Understanding How Does a Ductless Mini Split Work in Cooling Mode

When you set your remote to "Cool," the indoor unit’s fan springs into action. It pulls the warm, humid air from your room across the cold evaporator coils. As the refrigerant inside the coils absorbs the heat, something else happens: moisture from the air condenses on the cold coils, just like water droplets on a cold soda can.

This moisture removal is a huge part of your comfort. That liquid water (condensate) drips into a tray and is sent outside through a condensate drain line. This is why mini splits are so good at dehumidifying. The indoor fan then blows the newly cooled, crisp air back into the room. If you notice water leaking from your indoor unit, you likely have a clogged drain line and should look into Ductless Mini Split Repair Chatsworth CA to prevent water damage to your walls.

How Does a Ductless Mini Split Work for Winter Heating?

One of the coolest (or warmest) features of these systems is the reversing valve. This clever component allows the system to run the refrigerant cycle in reverse. Instead of taking heat from inside and dumping it outside, it harvests ambient heat from the outdoor air—yes, even when it’s cold out—and pumps it into your home.

This is known as heat pump technology. Because the system is moving heat rather than creating it (like an electric space heater or a furnace does), it is incredibly efficient—often 2 to 4 times more efficient than traditional heating methods. Modern systems are designed for high cold climate performance, with some units providing 100% heating capacity even when temperatures drop well below freezing. If your unit struggles to switch modes during a cold snap in the valley, we recommend a Ductless Mini Split Repair El Rio CA to ensure your reversing valve is functioning correctly.

Key Components and System Design

A mini split system is made of two main parts connected by a "conduit."

1. The Outdoor Condenser: This sits outside your home on a pad or a wall bracket. It houses the compressor, the condensing coil, and a large fan. It’s responsible for the heavy lifting of the heat exchange process.
2. The Indoor Air Handler: This is the part you see inside. It contains the fan, the evaporator coil, and the air filters.
3. The Conduit: This is the "bridge" between the two. It requires only a small three-inch hole through your wall to house the power cable, refrigerant tubing, and the drain line.

You aren't stuck with just one look, either. While the high-wall mount is most common, there are several indoor unit styles:

• Wall-mounted: The classic "capsule" look high on a wall.
• Floor-mounted: Great for attic spaces with low walls or replacing old radiators.
• Ceiling Cassettes: These sit flush with the ceiling for a nearly invisible look.

For homeowners looking for a seamless look, a Ductless Mini Split Installation Santa Rosa Valley CA can help determine which style fits your home's architecture best.

Single-Zone vs. Multi-Zone Systems

The beauty of ductless technology is its scalability.

• Single-Zone: One outdoor unit connects to one indoor unit. This is perfect for a garage, a sunroom, or a new home addition.
• Multi-Zone: One powerful outdoor unit can connect to up to eight indoor air handlers.

Each indoor unit has its own individual thermostat. This means you can have independent control over every room. If you like your bedroom at 68 degrees but want the guest room at 74, you can do that! This is a game-changer for families who fight over the thermostat. If you're considering adding comfort to several rooms at once, a Ductless Mini Split Installation Malibu CA can provide a multi-zone layout tailored to your floor plan.

Sizing and BTU Capacity

Getting the size right is critical. HVAC power is measured in BTUs (British Thermal Units). If a unit is too small, it will run constantly and never get the room cool. If it’s too large, it will suffer from short cycling—turning on and off rapidly—which wears out the compressor and fails to remove humidity.

As a general rule:

• 12,000 BTU: Good for 400–650 sq. ft.
• 18,000 BTU: Good for 600–1,000 sq. ft.
• 24,000 BTU: Good for 800–1,300 sq. ft.

We perform a detailed load calculation to ensure your system is perfectly matched to your room’s square footage, insulation levels, and window exposure. For a precise fit, a Mini Split Installation Camarillo CA is the best way to ensure long-term efficiency.

Why Go Ductless? Benefits and Comparisons

Why are so many people ditching the ducts? It mostly comes down to energy loss. In a traditional central AC system, the cool air has to travel through long stretches of ductwork, often in a hot attic. Research shows that ducts are responsible for 20-30% air loss in a typical home. By eliminating the ducts, you eliminate that waste.

Mini splits are often 20 to 30 percent more efficient than ducted systems. To keep those high SEER2 ratings (the efficiency score) where they belong, we recommend regular Ductless Mini Split Maintenance Santa Barbara CA.

Whisper-Quiet Operation

If you’re used to the "whoosh" and "clunk" of a central furnace or the roar of a window unit, a mini split will be a revelation. Indoor units typically operate between 20 and 49 decibels. For context, 20 dB is a whisper, and 40 dB is the sound of a quiet library.

This is possible because the loudest part of the system—the compressor—is outside. Furthermore, most mini splits use variable speed inverter technology. Instead of blasting at 100% and then shutting off, they adjust their speed to maintain a steady temperature, much like cruise control on a car. If your unit starts making unusual grinding or clicking noises, it's time for a Ductless Mini Split Repair Goleta CA to keep things quiet.

Potential Drawbacks to Consider

We believe in being honest with our customers. While we love mini splits, they aren't for everyone.

• Aesthetics: Some people don't like the look of a unit on the wall (though recessed ceiling cassettes can solve this).
• Filtration Limits: While they do have filters, they don't typically offer the heavy-duty HEPA filtration found in some large central systems.
• Professional Placement: If a unit is placed in the wrong spot, you can end up with hot or cold spots.

Placement is an art as much as a science, which is why a botched DIY job often leads to a Ductless Mini Split Repair Orangevale CA call later on.

Installation and Maintenance Essentials

The installation process is relatively non-invasive compared to central air. A professional technician will mount the indoor unit, mount the outdoor unit, and then drill a small three-inch hole to connect them.

There are specific electrical requirements—most systems need a 208-230V circuit—and the outdoor unit needs to be secured on a sturdy pad or mounting brackets. A standard single-zone installation usually takes about five to six hours. For a clean, code-compliant setup, we provide expert Ductless Mini Split Installation Elk Grove CA.

Keeping Your System Efficient

Mini splits are low-maintenance, but they aren't "no-maintenance." The most important thing you can do is filter cleaning. Because these units recirculate the air in the room, the filters catch dust and pet hair quickly. We recommend checking them once a month.

A professional annual service is also vital. We check the refrigerant levels, clean the outdoor condenser coils, and ensure the condensate drain is clear. Regular Ductless Mini Split Maintenance Ojai CA can extend the life of your system and keep your energy bills low.

Frequently Asked Questions

Do mini splits pull air from the outside?

No! This is a common myth. A mini split is a closed-loop system. It recirculates the air already inside your home. The conduit between the units only carries refrigerant and electricity; it doesn't move air. This is actually better for your indoor air quality because it doesn't pull in pollen or smog from outside. Many units also include multi-stage air purification filters to catch allergens within the room. If you feel like your air isn't as fresh as it used to be, a Ductless Mini Split Repair Rio Linda CA can help identify if your filters or coils need deep cleaning.

How long do ductless mini split systems last?

With proper care, you can expect a lifespan of 15 to 20 years. Because they use inverter technology, there is less "wear and tear" on the motor compared to traditional systems that are constantly cycling on and off. However, if your unit is nearing the two-decade mark and requires frequent repairs, it might be more cost-effective to look into a Mini Split Replacement Sacramento CA to take advantage of newer, even more efficient technology.

Can I install a mini split myself?

While you can buy "DIY kits," we strongly advise against it. Proper installation requires handling refrigerant (which requires an EPA license), high-voltage electrical work, and precision flares on the copper lines to prevent leaks. A DIY install often voids the manufacturer warranty protection and can lead to a 20% drop in efficiency if not sized or charged correctly. For your safety and peace of mind, it’s always better to opt for a professional Ductless Mini Split Installation Galt CA.

Conclusion

Understanding how does a ductless mini split work is the first step toward a more comfortable, energy-efficient home. Whether you're looking to cool a single "problem room" or you want to overhaul your entire home's HVAC system, AirWorks Solutions is here to help. We’ve been serving the greater Sacramento and Ventura County areas since 2010, providing honest, customer-focused solutions that last.

From a Mini Split Installation Simi Valley CA to a complex multi-zone Ductless Mini Split Installation Oak View CA, our team has the expertise to get the job done right the first time.

Ready to experience zoned comfort for yourself? Learn more about our mini split services and schedule your consultation today!
